JCS1/JCS2 JOHNCRANE MECHANCIAL SEALS
Name: | JCS1/JCS2 JOHNCRANE MECHANCIAL SEALS |
Product Description

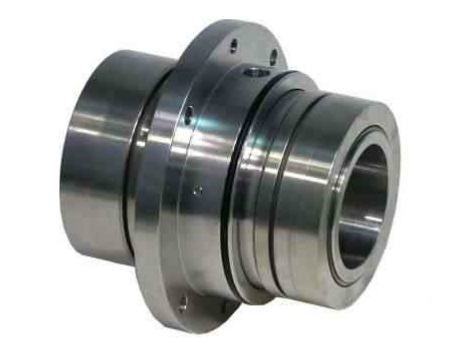

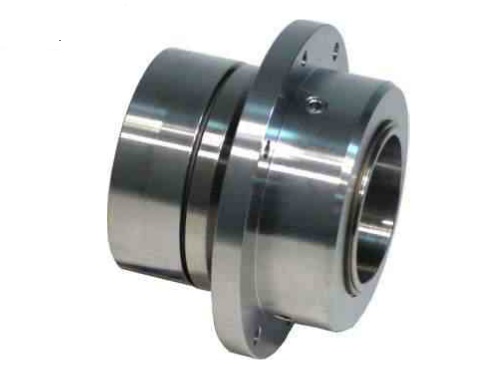

Product name : John crane type JCS2 seal
Item : ISP JCS2 SEAL
Details :
Type JCS2 is the excellent replacement of john crane type JCS2 seal,with
more economical price.
Type JCS2 seals are designed to be used in pumps for environmentally hazardous
and abrasive liquids when operating limits for single-acting seals are exceeded. The
double-balanced design of the seal allows the use of both pressurized and non-pressurized
sealant fluid. This design ensures reliable and long-lasting operation under the most
demanding conditions, reducing seal fluid consumption, and prevents environmental
emissions.
Several variant of the design available for different services:
JCS2P — OEM (Sulzer Ahlstar Up) Engineered double external stationary spring O-ring mounted seal
JCS2A — Double application-specific seal for Sulzer liquid ring pumps and Andritz ACP pumps
JCS2M — Double application-specific seal for Sulzer multistage pumps
JCS2-MC — Double application-specific seal for Andritz MC-pumps
JCS2E — Double application-specific seal for Sulzer hot liquid pumps
Features
1,The seal is fully integrated into the pump.
2,No measurements required for installation, reducing risk for error.
3,Shaft misalignment does not pulsate the spring or wear out the O-ring.
4,Torque transmission with super elastic devices, combined with no drive pins at seals faces.
This eliminates possible start-up failures.
5,Seal utilizes the integrated and advanced SmartFlow seal water control technology, reducing
more than 90% seal water savings usage.
Parameters
Temperature Limits
350°F/180°C
Pressure Limits
Process pressure: 350 psi(g)/25 bar(g)
Seal water pressure: 215 psi(g)/15 bar(g)
Speed Limits
65fps/20m/s
Standard Materials
Seal faces: SiC/SiC or SiC/SiC
O-rings: PTFE (product side), EPDM, Viton
Metal parts: EN 1.4436/1.4460 (AISI 316/329)
Springs: EN 1.4436 (AISI 316)
