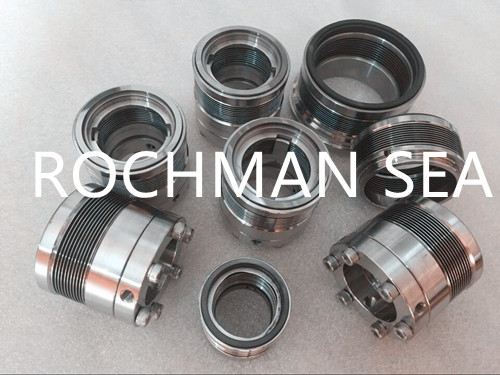

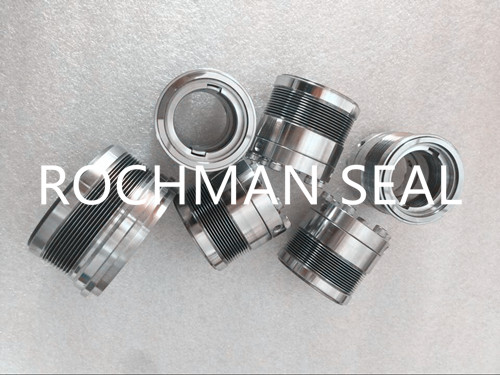

Burgmann Metal Bellow MFLWT80 For High Temperature Use In Oil Pumps And Chemical Pumps


  • Burgmann Metal Bellow MFLWT80 For High Temperature Use In Oil Pumps And Chemical Pumps

Name:Burgmann Metal Bellow MFLWT80 For High Temperature Use In Oil Pumps And Chemical Pumps

Product Description

Operating Limits:
Pressure: ≤2.5MPa
Speed: ≤20m/s
Temperature: -100℃~+400℃

Rotary Ring (SiC/Carbon/TC)
Stationary Ring (SiC/TC)
Secondary Seal (Flexible Carbon)
Metal Bellows (SUS316L/AM350/Inconel718/Titanium/Hastelloy-C/AIIoy-20)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)

Features:
⑴For unstepped shafts
⑵Single Seal
⑶Balanced
⑷Independent of direction of rotation
⑸Metal bellows rotating

Advantages:
⑴For extreme high temperature ranges
⑵No dynamically loaded O-Ring
⑶Self cleaning effect
⑷Short installation length possible
⑸Pumping screw for highly viscous media available (dependent on direction of rotation)

Suggested Applications:
⑴Process industry
⑵Oil and gas industry
⑶Refining technology
⑷Petrochemical industry
⑸Chemical industry
⑹Pulp and paper industry
⑺Hot media
⑻Highly viscous media
⑼Pumps
⑽Special rotating equipment
