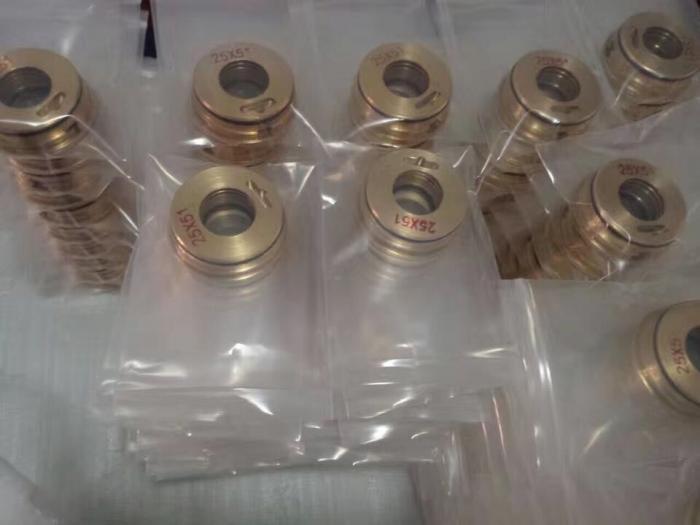

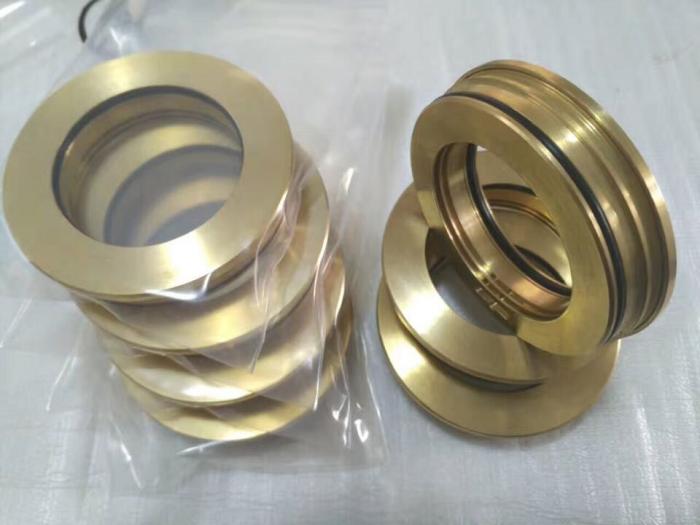

Standard bearing isolator is designed, composed of tin bronze ring and static ring.In the operation of the dynamic and static ring does not contact, no risk of cross shaft, relying on the unique design of the labyrinth can prevent leakage of lubricant, and can prevent external invasion of pollutants.Reach IP66 protection grade, service life in more than 10 years, the product itself is almost no power consumption.
Speed requirements: no higher than 60 m/s
Temperature : - 35 oc to 210 oc
Using axial size: 20 mm to 4000 mm
Shaft beating: 0 ~ 0.4 mm
Axis displacement: 0 ~ 0.4 mm
Pump. Motor, gear box. Rotary valve. Blender. Mixer. Conveying equipment. Process pump, screw pump, boiler injection pumps. All kinds of parallel axis, cooling tower fan. Turbine. Bearing seat. The centrifuge. Coal mill. Crusher. Screw conveyor. Refining machine. The roll.
