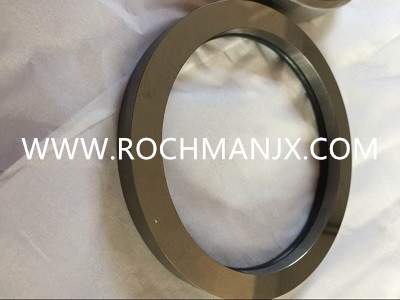

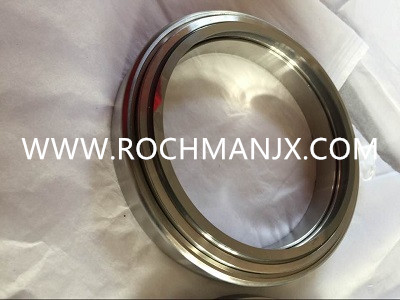

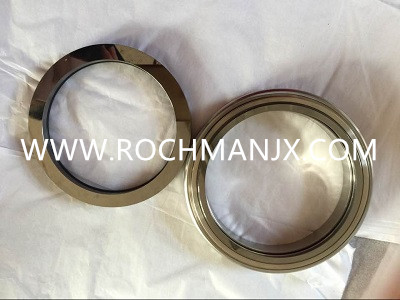

BURGMANN MECHANICAL SEAL H8/H10


  • BURGMANN MECHANICAL SEAL H8/H10

Name:BURGMANN MECHANICAL SEAL H8/H10

Product Description

Single face
The balanced
Conical spring
Fixed rotate to
Comply with EN12756(DIN24960) standard.
H8/H10 series of mechanical seal, simple structure, wide application, good reliability.Suitable for water pump, sewage pump, submersible pump and chemical process pump.
Operation parameters
Specification: 15-100 - mm
Pressure: 2.5 mpa or less
Temperature: - 20-250 ℃
Linear velocity: less than 35m/s.
Axial channeling momentum: plus or minus 0.5mm.
Material combination
Seal face: graphite, silicon carbide, tungsten carbide, aluminum oxide, stainless steel.
Auxiliary seal: nitrile rubber, fluorine rubber, ethylene propylene, PTFE.
Metal components: stainless steel.
Recommended application:
Process industries
chemical
Water and wastewater technology.
Lubricating oil
Cylinder seal
Bearing seal
